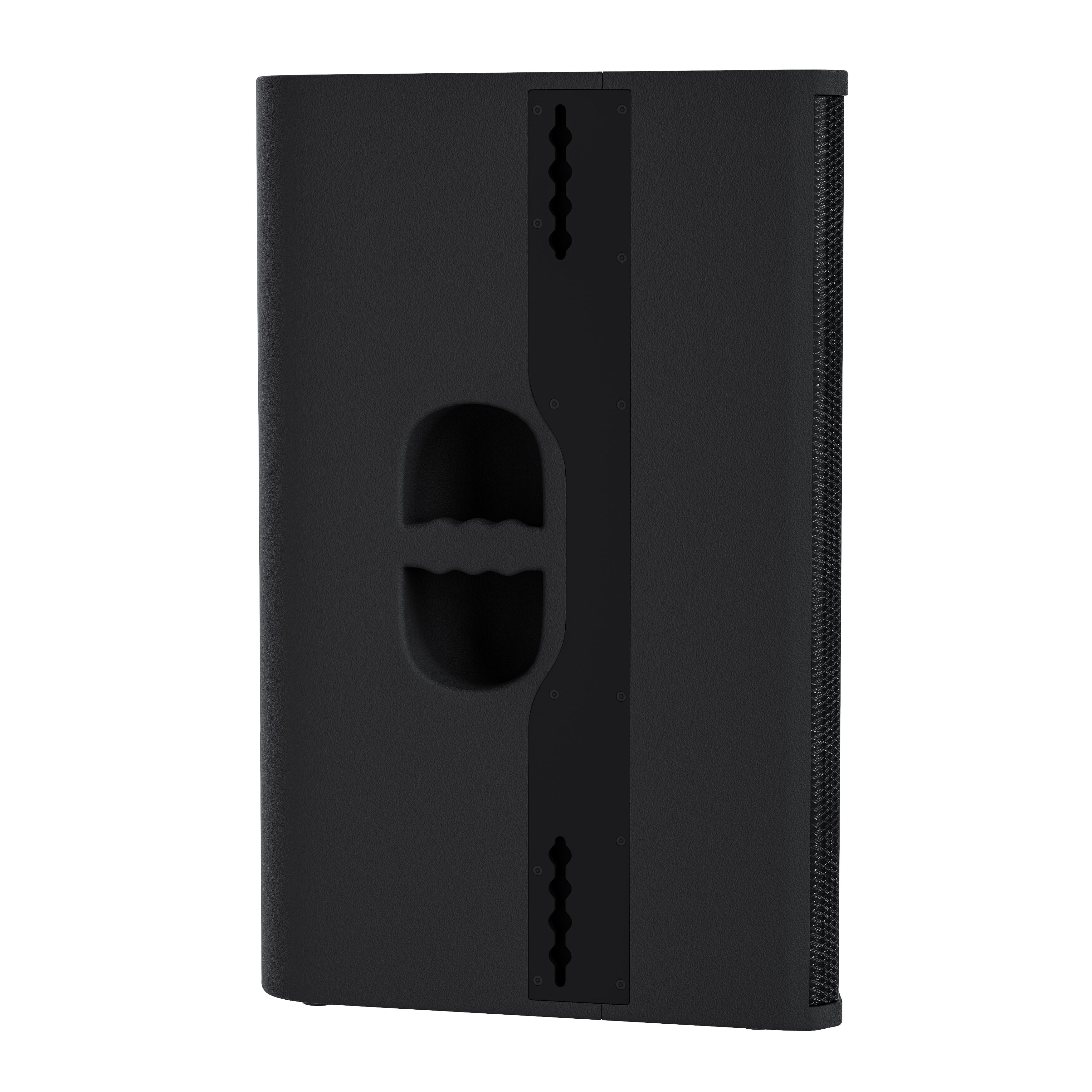

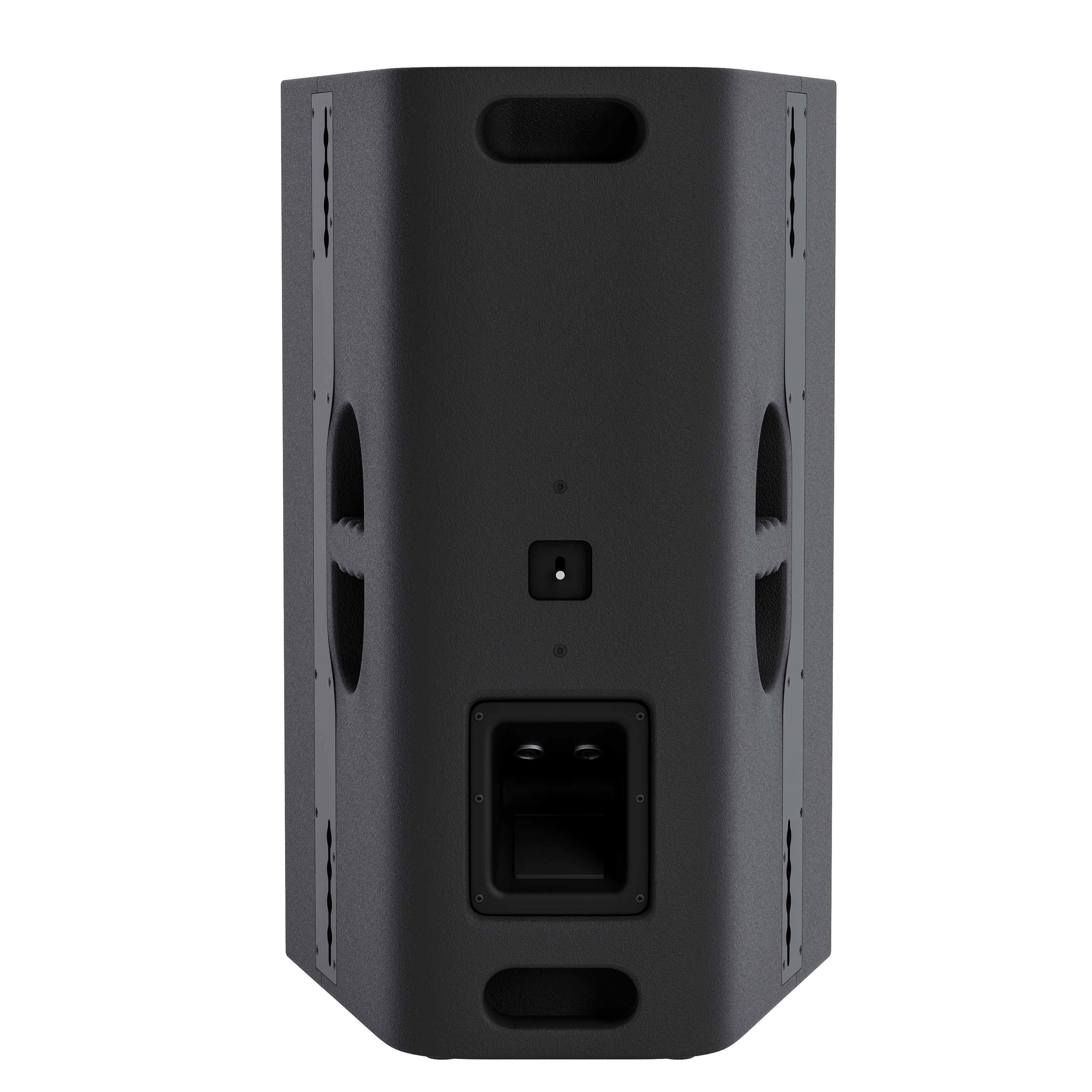

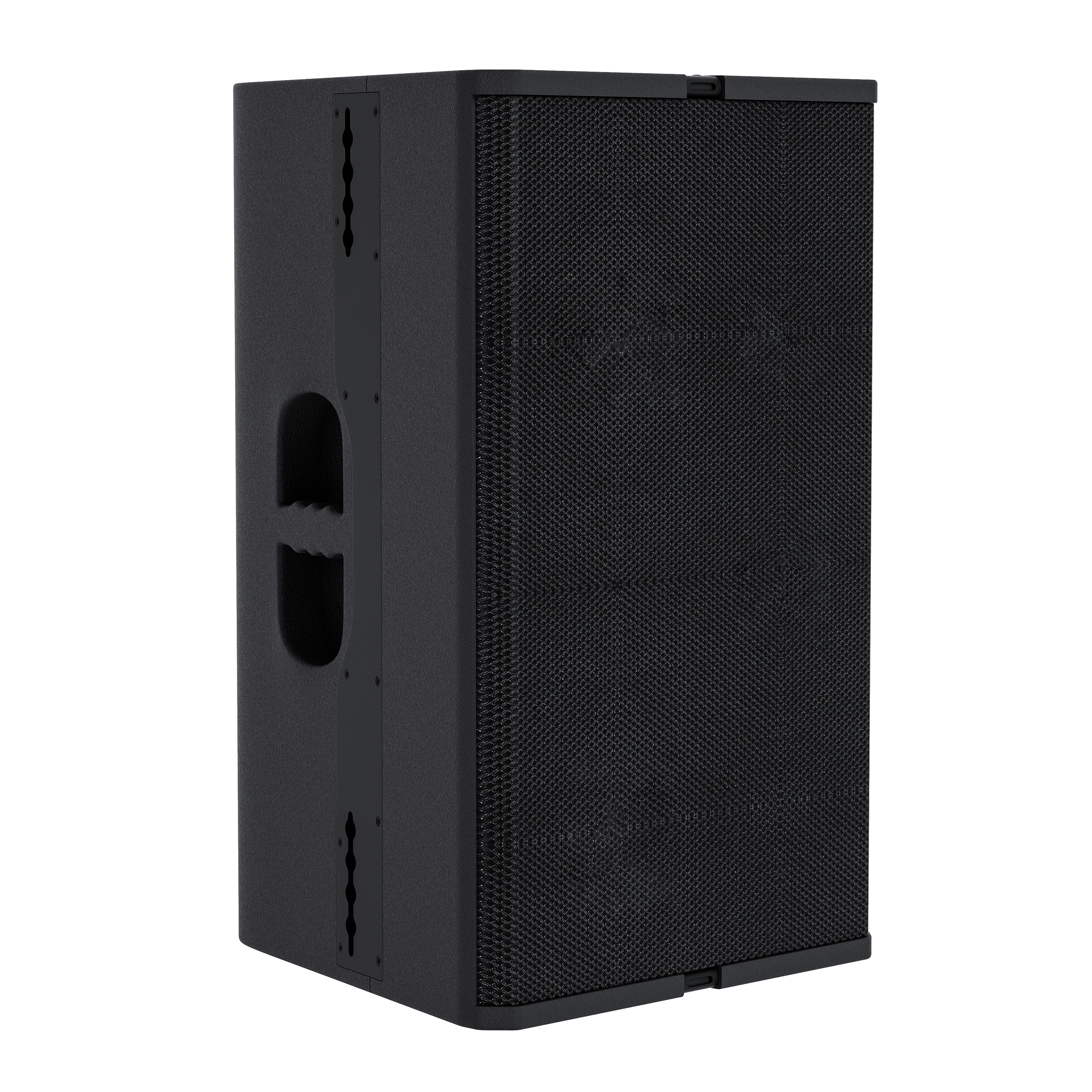

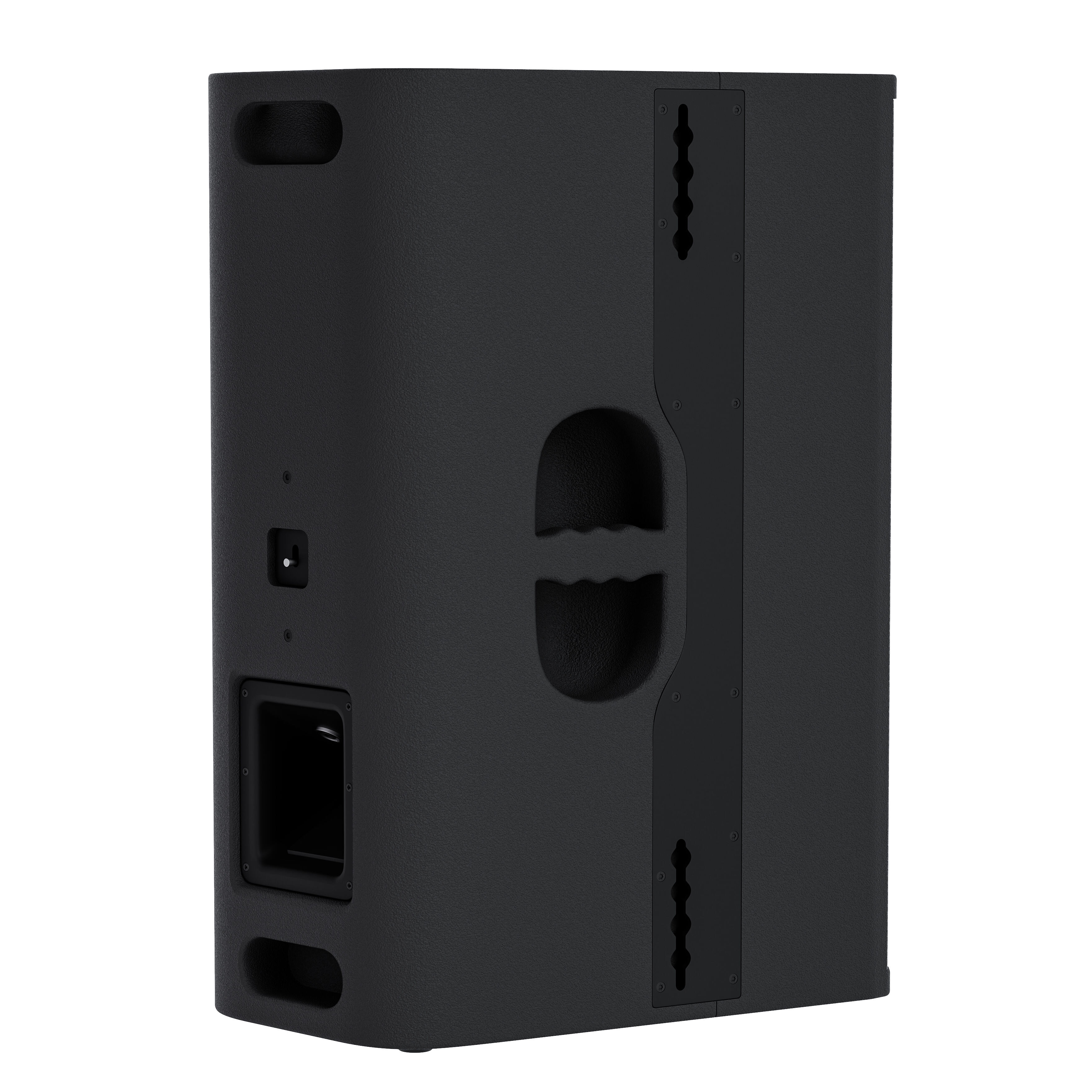

Dual 12inch Full Range Speaker Active Passive 1000W

In the professional audio landscape, procurement officers and system designers frequently seek equipment that balances high-pressure output with mechanical flexibility. The T24N Audio is a specialized Dual 12inch Full Range Speaker engineered to meet these precise industrial requirements. As a manufacturer with over 20 years of expertise, Lase Sound has developed this unit to serve as a high-density acoustic solution for theaters, stadiums, and indoor arenas. By utilizing a high-output 1000W Speaker architecture, the T24N provides a scalable platform for various sound reinforcement challenges, ensuring that technical performance translates into long-term operational reliability.

Transducer Technology and Neodymium Integration

The acoustic core of the T24N involves a sophisticated arrangement of drivers designed for maximum efficiency. This Dual 12inch Full Range Speaker utilizes two 12-inch neodymium low-frequency drivers. Neodymium is specifically chosen for these components because it offers a significantly higher magnetic flux density than traditional ferrite magnets while reducing the overall weight of the cabinet. This allows the system to function effectively as an Active Speaker when paired with external processing, maintaining a high sensitivity of 107dB for the LF section and ensuring that the 1000W RMS power is converted into effective sound pressure with minimal thermal loss.

Complementing the LF section is a high-precision 3-inch voice coil HF driver. This combination allows the 1000W Speaker system to achieve a Maximum SPL of 143dB, a figure that is essential for applications requiring long-throw coverage, such as large churches or outdoor sports events. The integration of these drivers within a compact 706 x 440 x 440 mm frame represents a significant achievement in power-to-size ratio, providing the output typically associated with much larger enclosures. For touring companies, this means reduced transport costs without sacrificing the sonic impact required for major events.

Acoustic Coverage and Directivity Management

One of the most critical features for B2B installers is the ability to control sound dispersion based on the venue's geometry. The T24N Dual 12inch Full Range Speaker comes standard with a 60° x 40° HF horn. However, our engineering team has designed this horn to be both exchangeable and rotatable. Without the use of complex tools, technicians can quickly switch the coverage to 90° x 50°, allowing the unit to be utilized in both vertical and horizontal orientations. This flexibility is vital for nightclubs and restaurants where ceiling heights and room widths vary significantly.

The precision of this horn design ensures that high-frequency energy is concentrated where it is needed, reducing unwanted reflections in acoustically challenging spaces like theaters or indoor arenas. Even when configured as a Passive Speaker using the internal crossover, the consistency of this coverage is maintained across the entire frequency response of 100 Hz to 18 kHz. This ensures that whether the system is used for speech reinforcement or high-energy music, the tonal balance remains uniform throughout the listening area, providing the audience with a clear and balanced auditory experience regardless of their seating position.

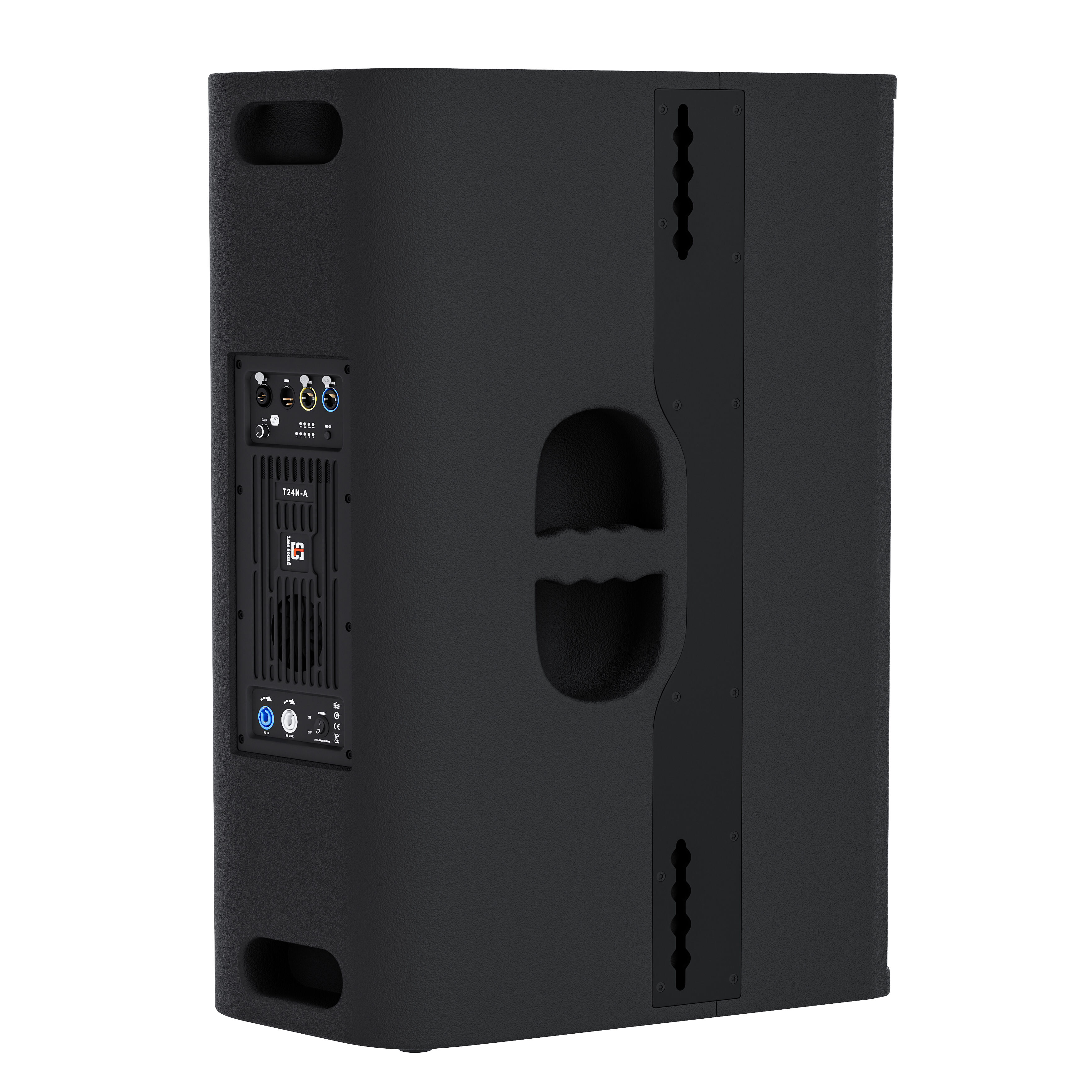

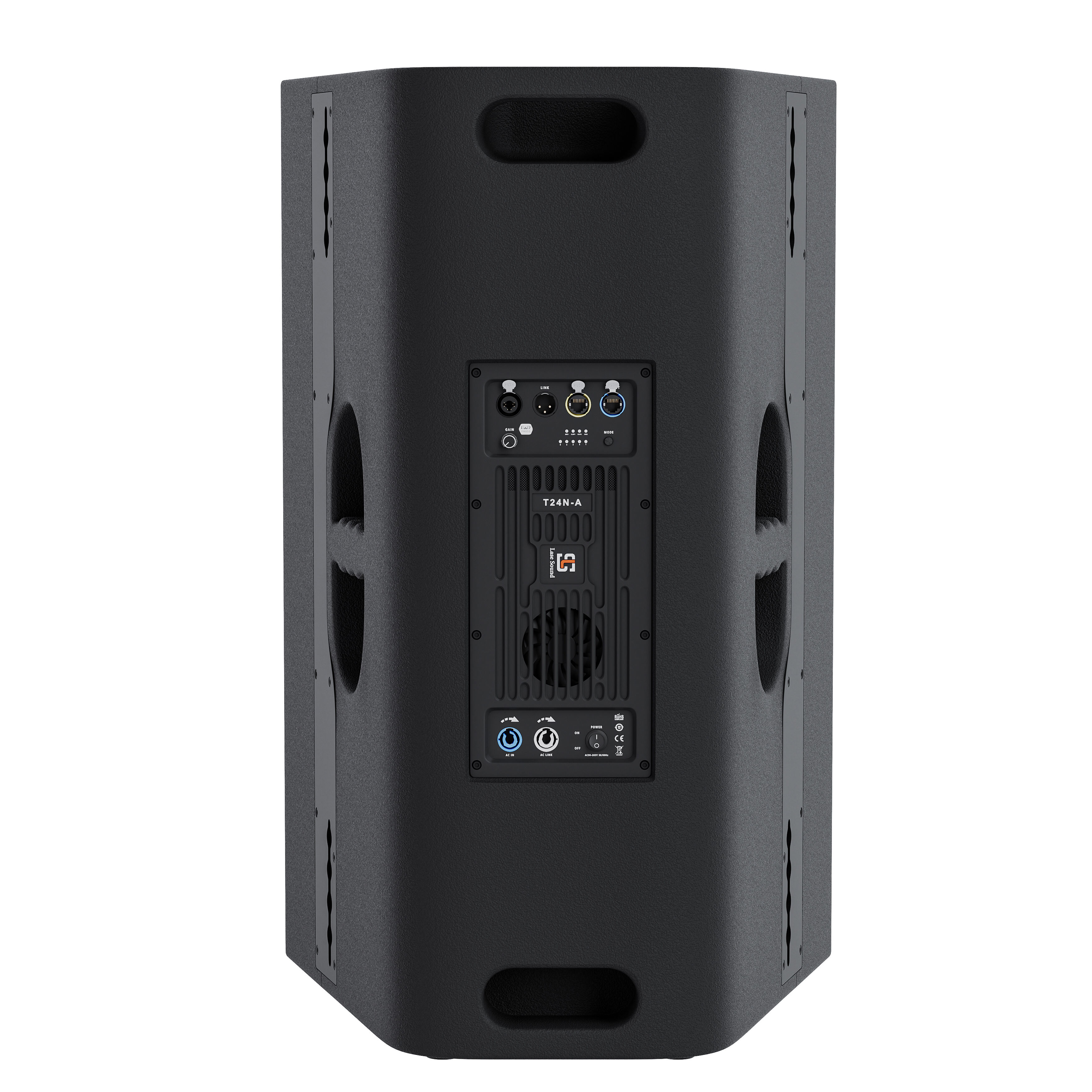

Operational Versatility: The Active/Passive Toggle

From a rental and staging perspective, the ability to adapt to existing amplifier inventories is a major cost-saving advantage. The T24N is equipped with a dedicated switch that allows the operator to choose between its role as an Active Speaker (bi-amp) or a traditional crossover-based unit. In the bi-amp mode, external DSP can be used to fine-tune the transition between the LF and HF drivers, which is often preferred for high-stakes concert environments. Alternatively, switching to a Passive Speaker mode utilizes the internal high-quality crossover network, allowing the Dual 12inch Full Range Speaker to be driven by a single amplifier channel without compromising sound quality.

This switchable functionality ensures that the T24N can be integrated into diverse system architectures. For a cinema or a small theater, the internal network simplifies the wiring and reduces the number of required amplifier channels. For a large stadium installation, the bi-amp mode provides the granular control necessary to protect the drivers during continuous high-SPL operation. Regardless of the mode selected, the 1000W Speaker rating remains optimized for efficient power transfer from modern professional amplifiers, providing a nominal impedance of 4 ohms that is compatible with standard industrial power stages.

Manufacturing Excellence and Quality Assurance

Lase Sound’s 13,500+ square meter manufacturing base is equipped with precision machinery to ensure every T24N unit meets strict global standards. Our CAD-CAM design process ensures that the internal porting and horn geometry are identical across all units, providing the phase coherence required for multi-box arrays. With a staff of 286 professionals, we oversee every detail from the initial steel works to the final installation testing. When a client orders an Active Speaker configuration, our electronic department verifies the internal wiring and connector integrity to ensure zero-failure deployment in the field.

Quality control at our facility involves multiple stages of evaluation. Before any Passive Speaker leaves our factory, it undergoes a full-power stress test to verify the 2000W peak power handling capability. This ensures that when the 1000W Speaker is deployed in a mission-critical environment, such as a large church or a professional theater, it will perform reliably for years. Our commitment to quality has allowed us to serve over 60,000 cooperative customers in more than 100 countries. Every Dual 12inch Full Range Speaker is a product of this disciplined environment, where precision machining and high-grade component selection are standard.

Conclusion

The T24N represents a balanced investment for professional audio providers. Its dual-mode operation makes it a versatile Dual 12inch Full Range Speaker that can adapt to changing project requirements, while its high SPL capability ensures it can handle the most demanding acoustic environments. Whether configured as a high-performance Active Speaker for touring or a robust Passive Speaker for fixed installation, the T24N provides a superior return on investment.

Lase Sound continues to invest in precision engineering to ensure that every 1000W Speaker remains a dependable pillar in the market. We provide the manufacturing capacity and technical support needed to help our global partners deliver clear and powerful audio in any environment. By choosing Lase Sound, you are securing a product that has been validated by decades of industrial experience and a commitment to acoustic excellence that is recognized worldwide.
