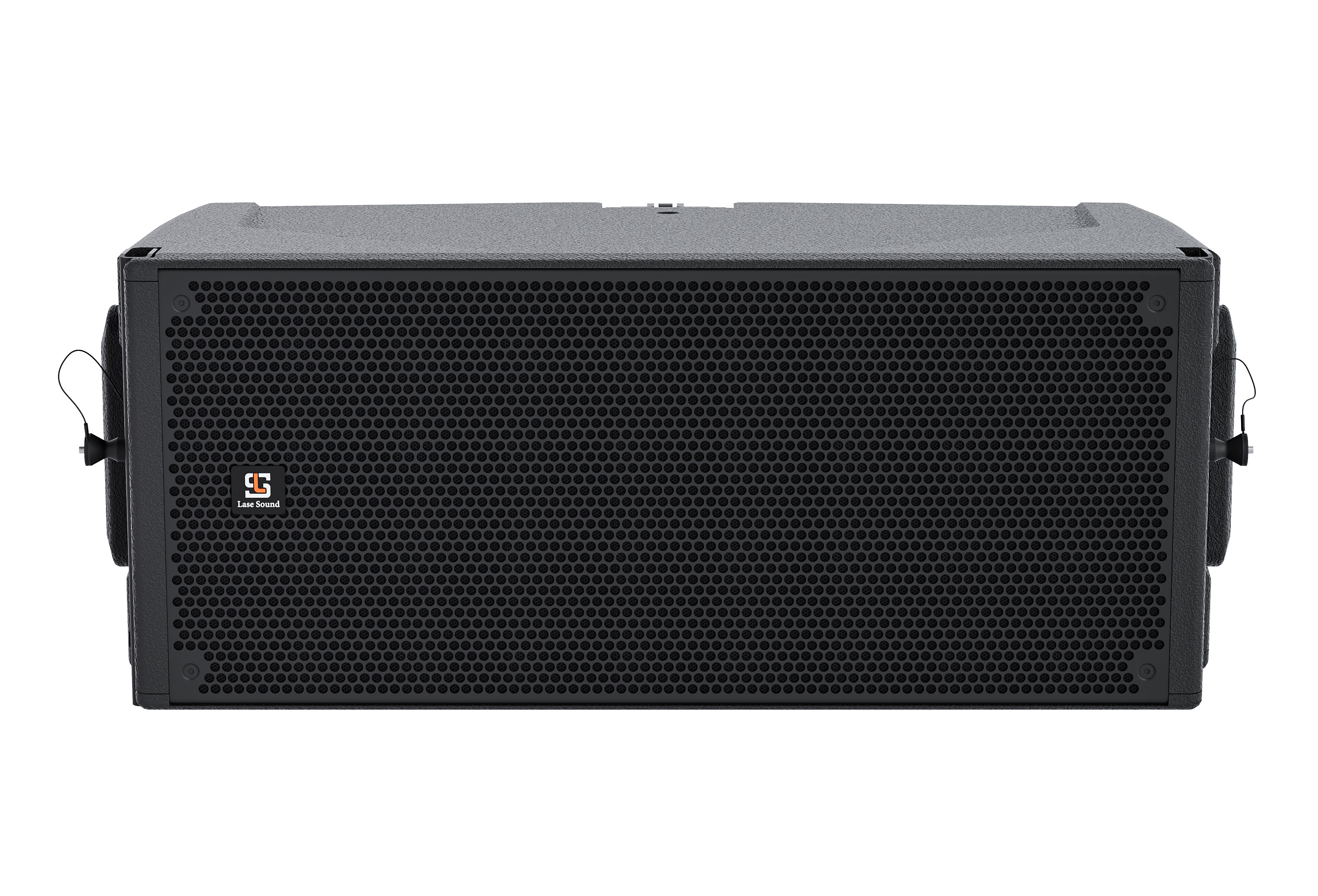

HDL210A
|
Rated power |
LF 600W / HF 110W(RMS) |
|
Program power |
LF 1200W / HF 220W |
|
Drivers |
LF 2*10' / HF 1*3' |
|
Impedance |
LF 4 or 8Ohms / HF 8Ohms |
|
Sensitivity(1W/1m)db |
102dB (1w@1m) |
|
Maximum Peak SPL |
132dB (Pmax@1m) |
|
Frequency response |
65Hz-20KHz |
|
Directivity |
H 110° X V10° |
|
Connections |
2xNL4 1+/1- LF/ 2+/2- HF |
|
Dimension |
705x445x294mm |
|
Amplifier module power |
800W+800W 8Ohms 1600W+1600W 4Ohms Built-in GermanyDSP FIR |
|
Distortion |
<0.05% |
|
Power Connector |
Power Con |
|
Operating Voltage |
AC90-260V /50/60Hz |
- Overview
- Related Products

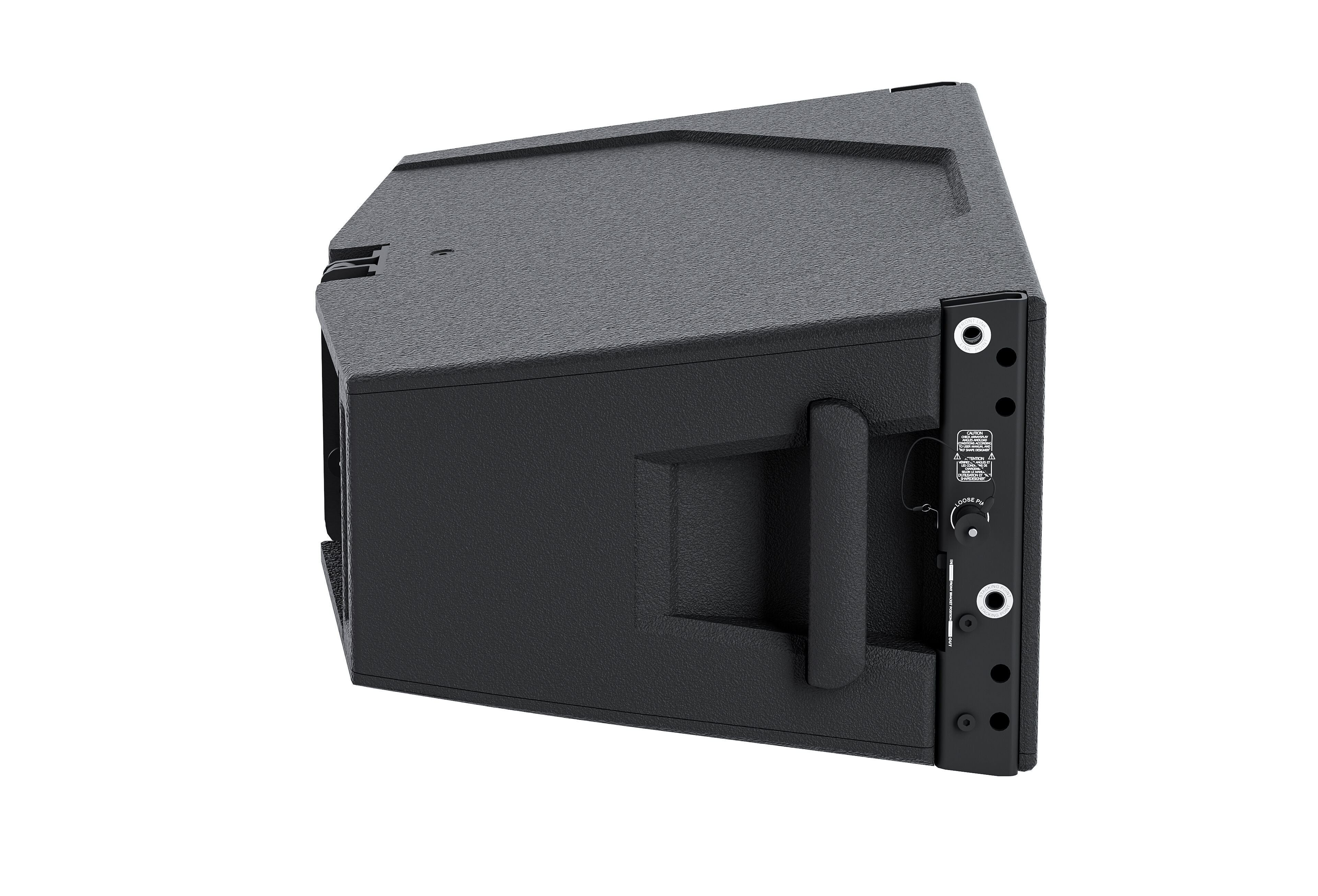

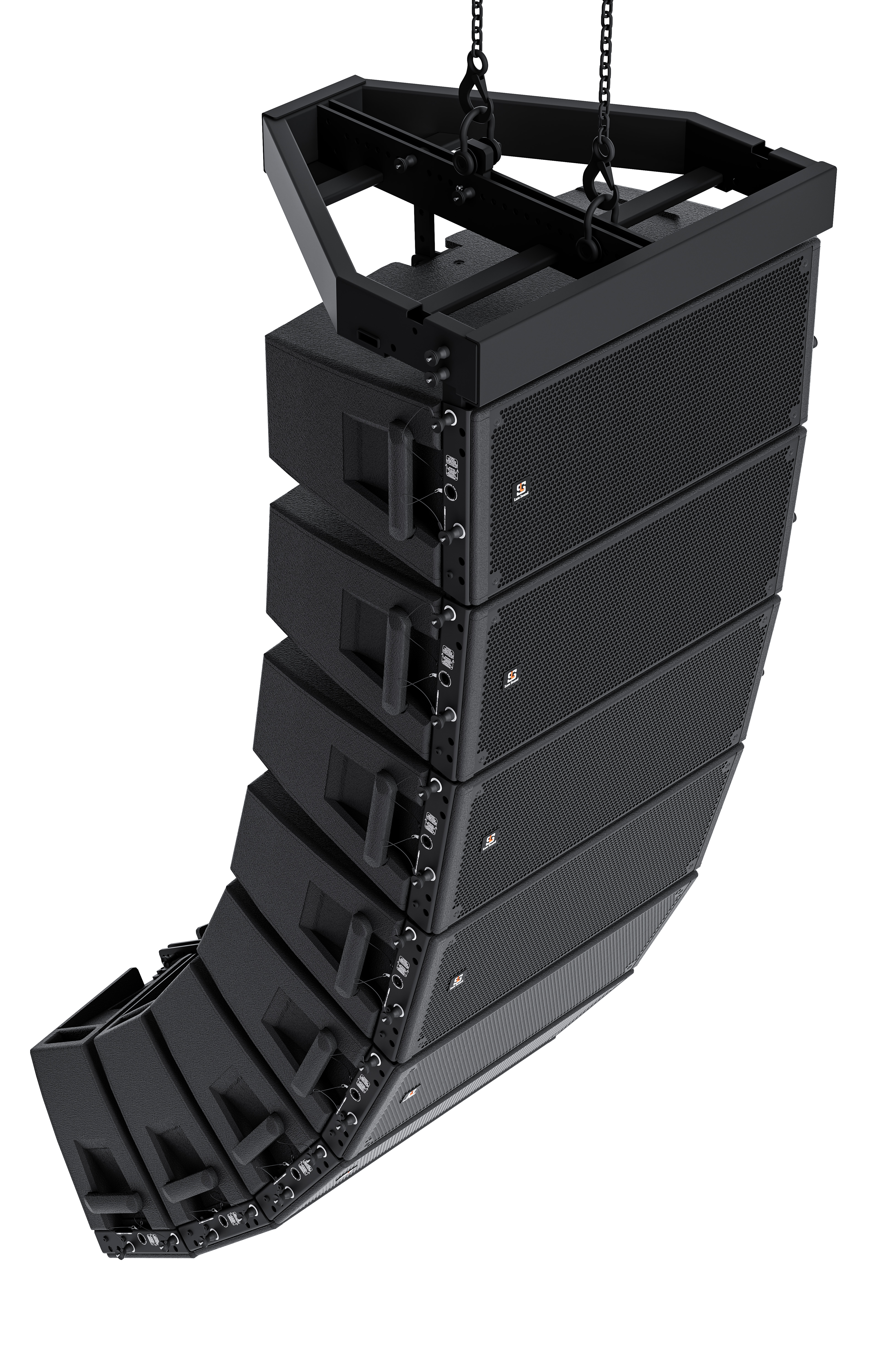

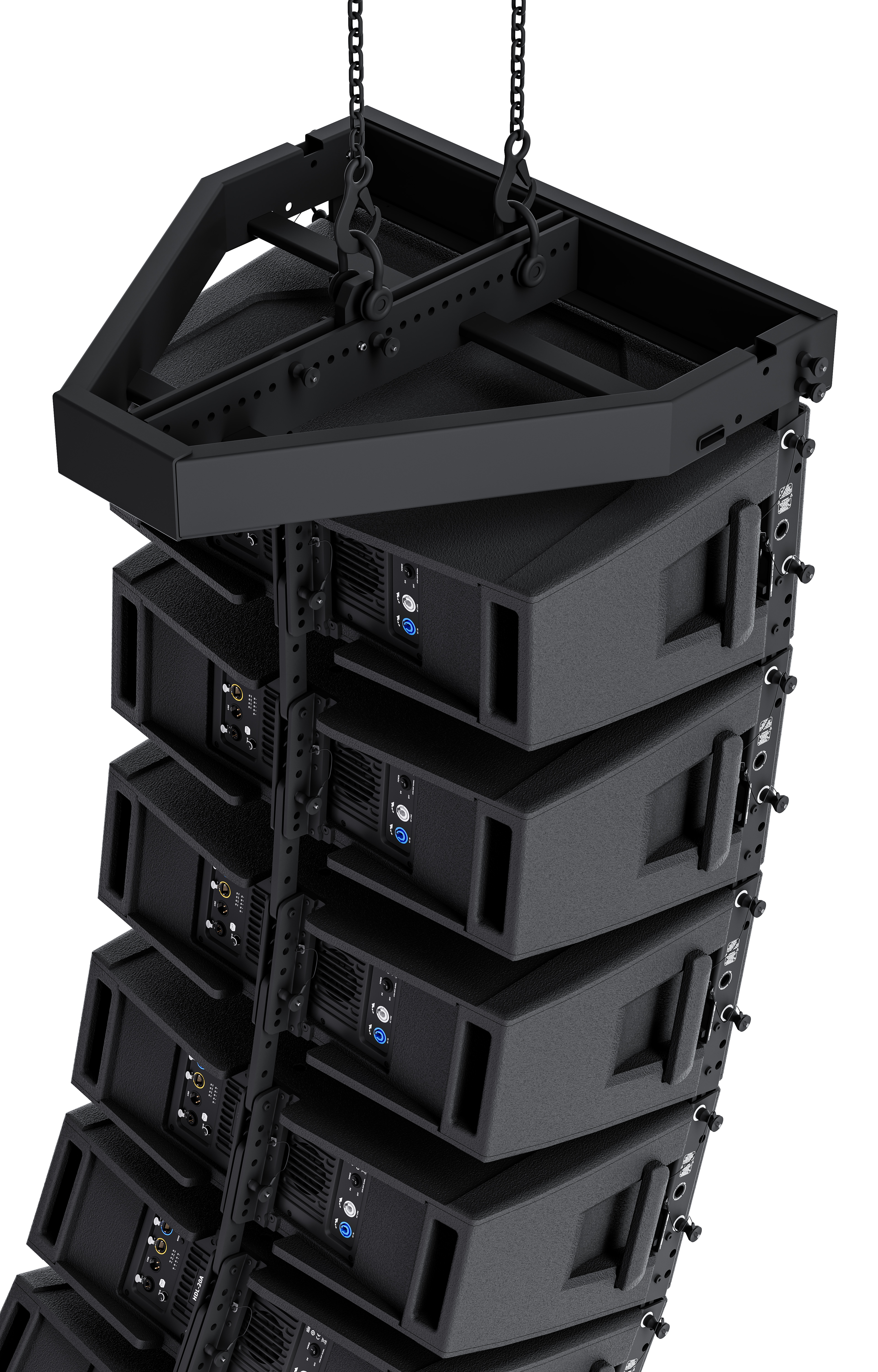

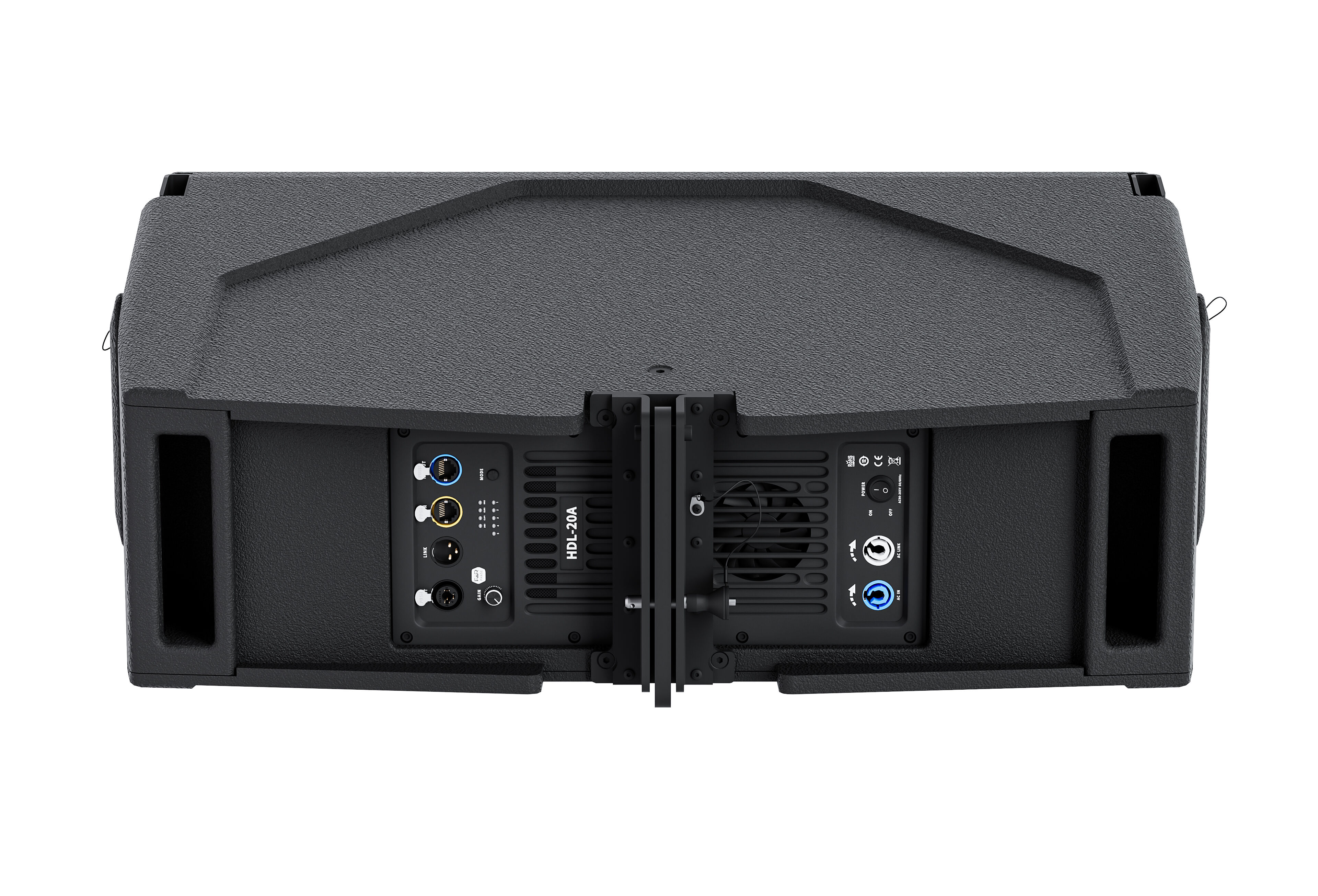

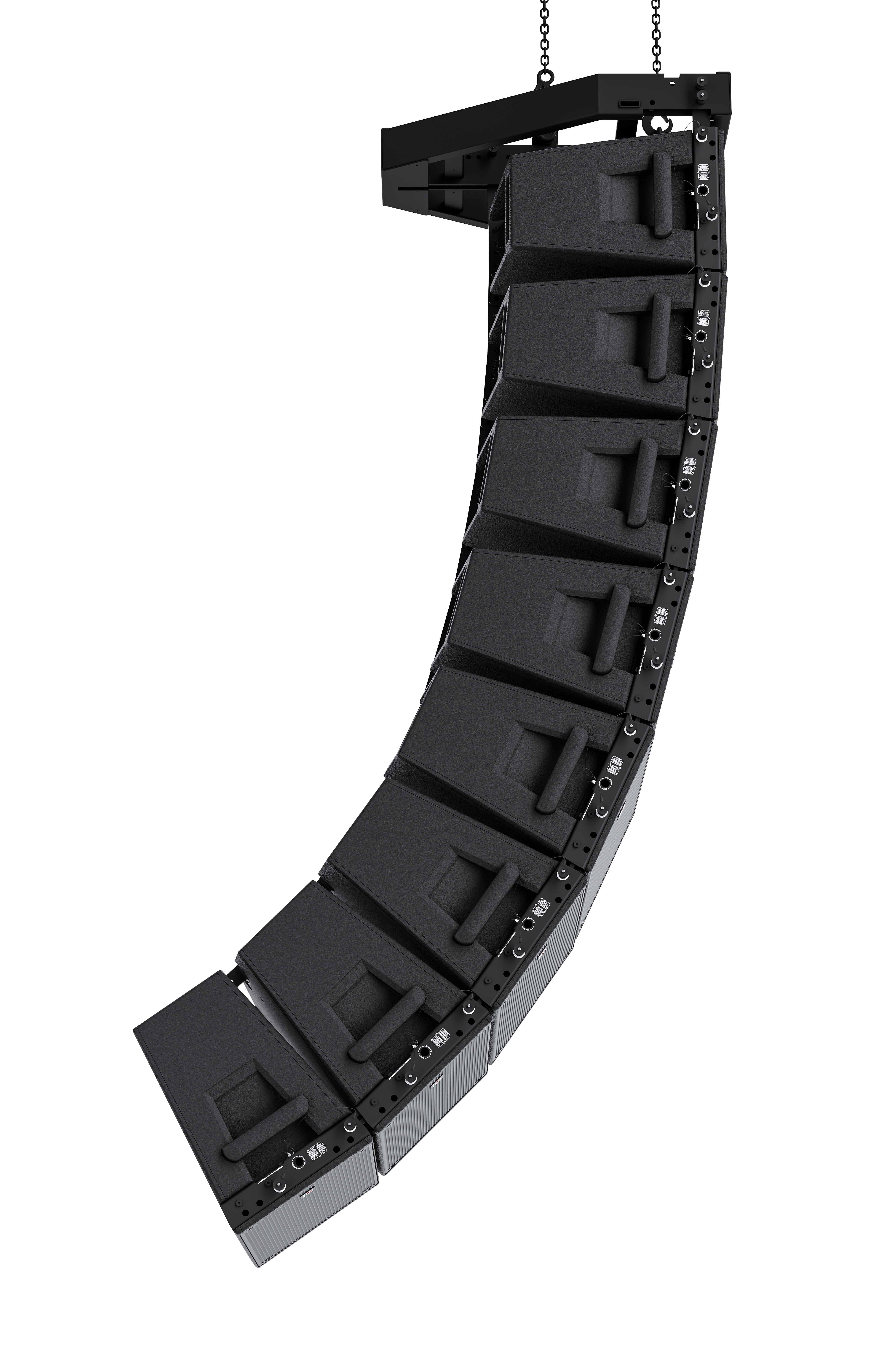

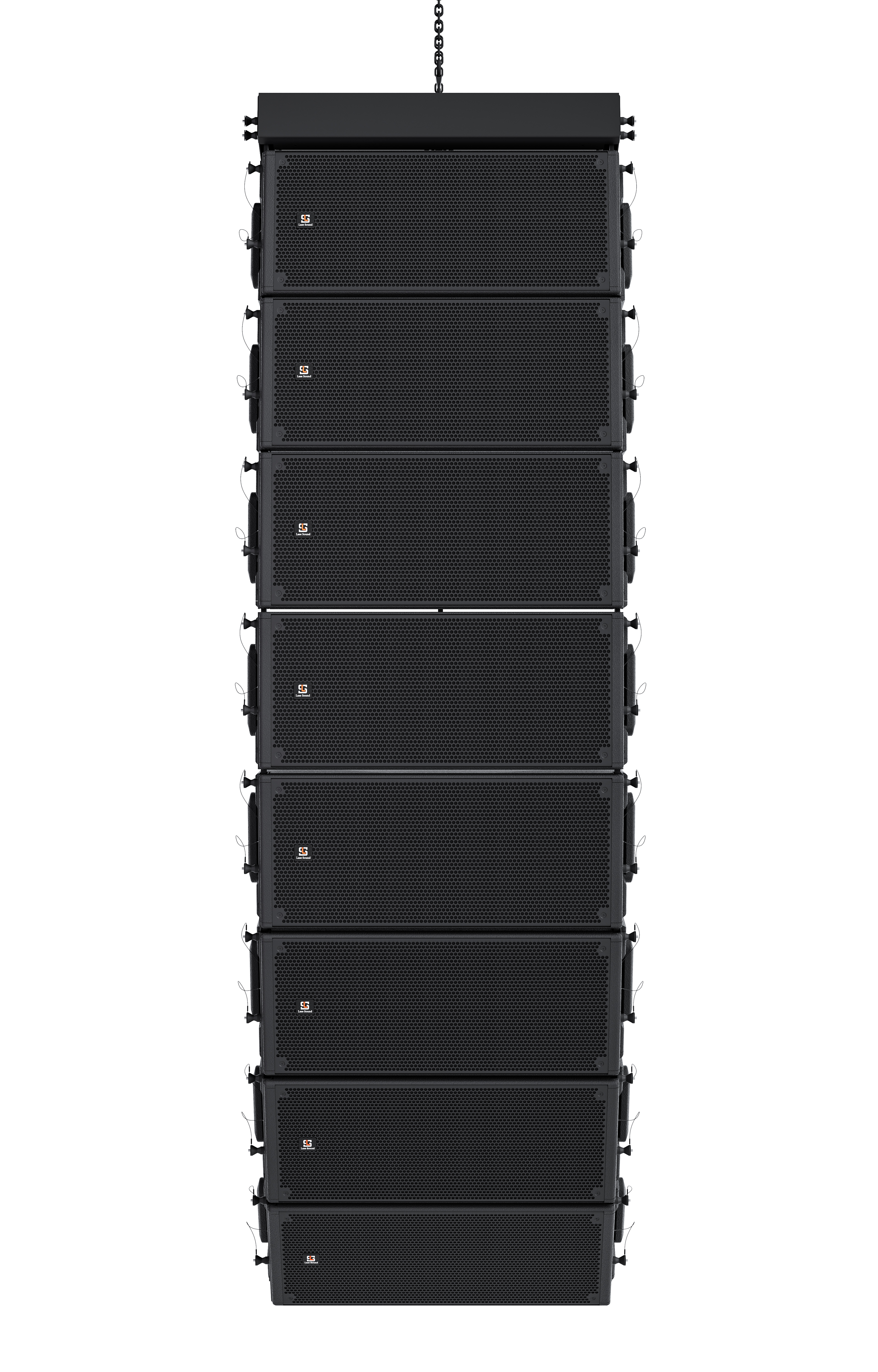

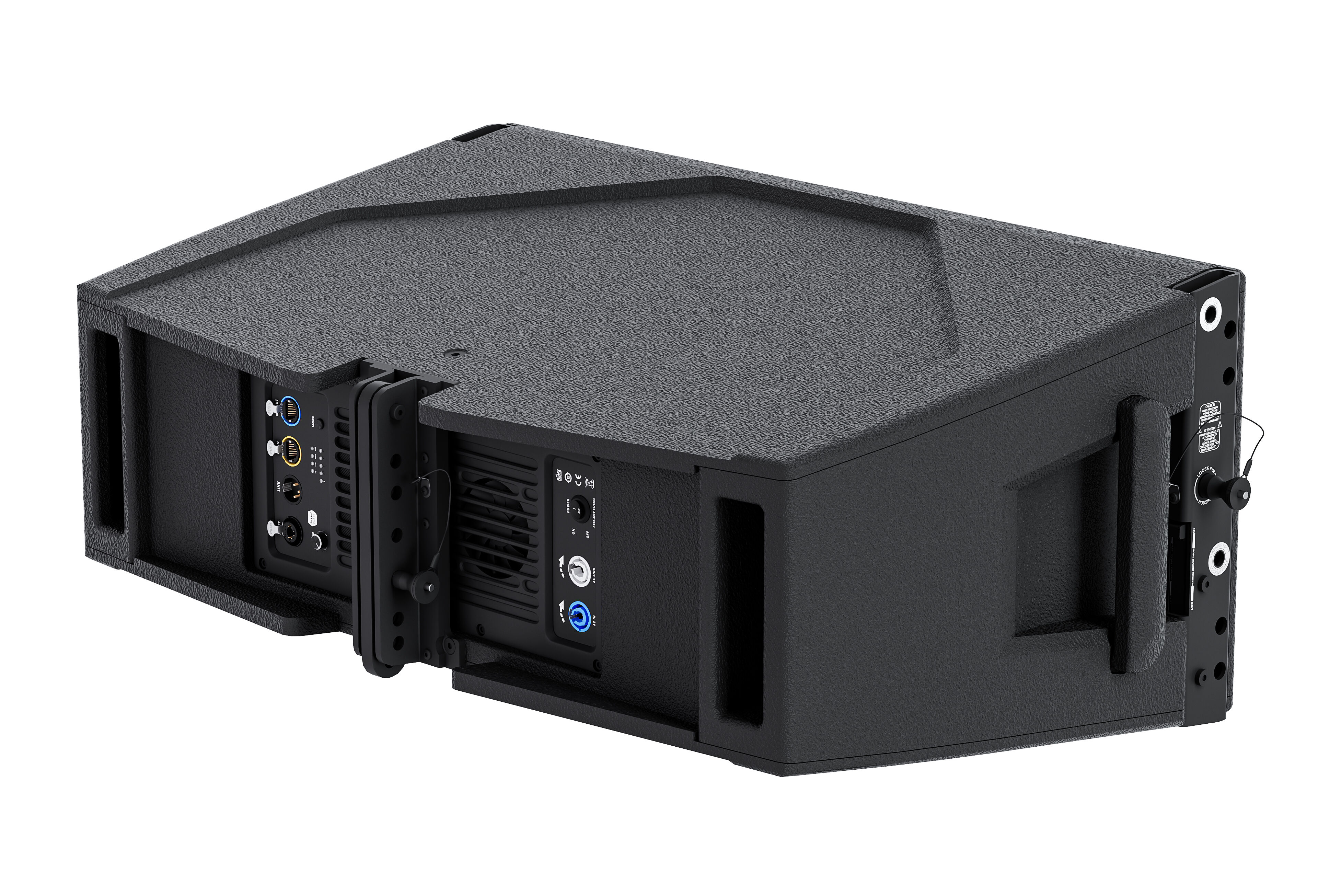

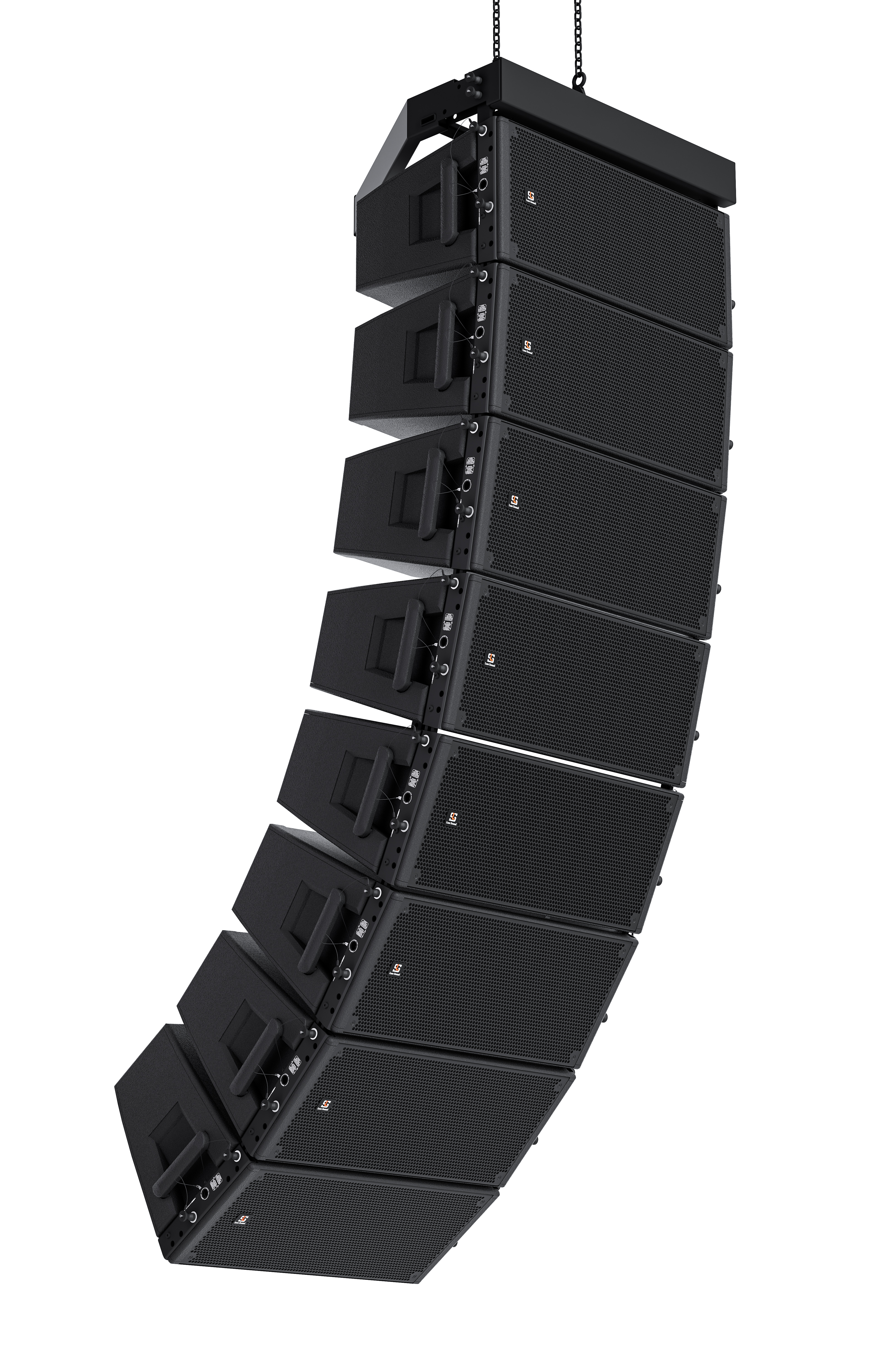

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 210-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 210-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1600 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. , two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 118-AS is the ideal flyable bass complement for the HDL 210-A array system.
